Crazy RealTime Protocol

The protocol used to communicate with the Crazyflie is called the Crazy RealTime Protocol, or CRTP in short. It's a simple protocol mainly designed to suit the radio chip used on the Crazyflie but the protocol can also be used on other physical links.

This page and it's sub-pages describe the protocol itself, not the implementation of some of the more complex functions such as logging and parameters.

Each packet has a 1 byte header and can carry up to 29 bytes data payload. The header field has the following layout:

   7    6    5    4    3    2    1    0
+----+----+----+----+----+----+----+----+
|       Port        |  Link   |  Chan.  |
+----+----+----+----+----+----+----+----+

Where:

  • Port: Used to identify the functionality or task that is associated with this message
  • Link: Reserved for future use
  • Channel: Used to identify the sub-task/functionality

Layers

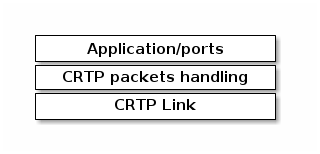

CRTP is implemented in 3 layers:

  • CRTP Link is responsible for transferring the packets between the Crazyflie and the host. It will typically handles packet size and error detection.
  • CRTP Packet handling delivers the packet to the right subsystem in the Crazyflie and in the host control software.
  • Application/ports represents the subsystems that sends and receives messages.

Port allocation

Current port allocation:

Port Target Used for
0 Console Read console text that is printed to the console on the Crazyflie using consoleprintf
2 Parameters Get/set parameters from the Crazyflie. Parameters are defined using a macro in the Crazyflie source-code
3 Commander Sending control set-points for the roll/pitch/yaw/thrust regulators
5 Log Set up log blocks with variables that will be sent back to the Crazyflie at a specified period. Log variables are defined using a macro in the Crazyflie source-code
7 Setpoint Generic For sending generic, extensible setpoints
14 Client-side debugging Debugging the UI and exists only in the Crazyflie Python API and not in the Crazyflie itself.
15 Link layer Used to control and query the communication link

Physical layers

Below are details on how CRTP is implemented for different physical links. Currently only the radio link is working but there's some legacy support for the UART still in the code.

2.4 GHz NordicSemi Radio

The wireless interface will add additional header data like CRC when sending the packet and therefore the packet sent to the wireless interface is only a CRTP packet.

USB port

This is currently not implemented but it will potentially replace the serial port link. The use of this is to get CRTP at higher speeds than the radio can transmit.

Serial port

The serial port is configured in 115200 8N1. CRTP packets are sent and received asynchronously using the following packet format:

  7   6   5   4   3   2   1   0
+---+---+---+---+---+---+---+---+
|             0xAA              |
+---+---+---+---+---+---+---+---+
|             0xAA              |
+---+---+---+---+---+---+---+---+
|      Port     |  Res  | Chan. |
+---+---+---+---+---+---+---+---+
|         Packet length         |
+---+---+---+---+---+---+---+---+
|            DATA 0             |
+---+---+---+---+---+---+---+---+
:   :   :   :   :   :   :   :   :
+---+---+---+---+---+---+---+---+
|            Cksum              |
+---+---+---+---+---+---+---+---+

+--------+--------+--------+--------+--------+--....--+--------+
|  0xAA  |  0xAA  | Header | Length | Data0  | Packet | Cksum  |
+--------+--------+--------+--------+--------+--....--+--------+
Field Byte Bit Description
Start 0-1 0-2 Start token for synchronization (0xAAAA)
Header 2 0-1 The destination channel
2 2-3 Reserved for the link layer
2 4-7 The destination port
Size 3 Number of data byte
Data 4-.. The data in the packet
Cksum 4+size Checksum. Sum of all the bytes, excluding Start, modulo 256.

Example

To send setpoints to the commander send:

0xaa 0xaa 0x30 0x0e 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x3e

To ping Crazyflie:

 ->   0xaa 0xaa 0xf0 0x01 0x01 0xf2     # Sent to the copter
 <-   0xaa 0xaa 0xf0 0x01 0x01 0xf2     # Received from the copter
